The Wesmar thruster is powered by a 10hp Chicago electric motor and features two counter-rotating props:
Each with its own zinc (size "B"). The thruster was completely rebuilt, by Wesmar in Bothell WA, in June 2011.
Additional pictures of the thruster installation can be seen in on the "Bow" page. |

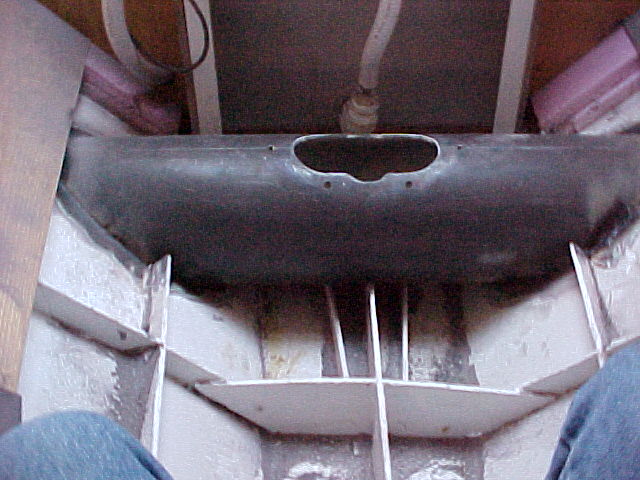

Sail Locker during Install
8" seamless steel tube after welding in the aft end of the sail locker |
 |

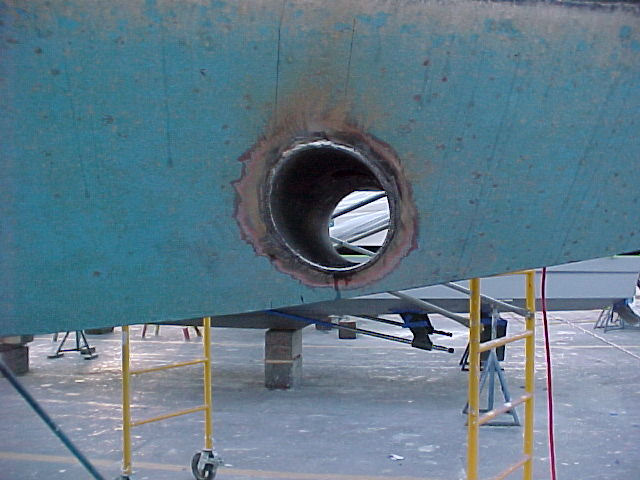

| Starboard Close-up View after welding but before grinding |
 |

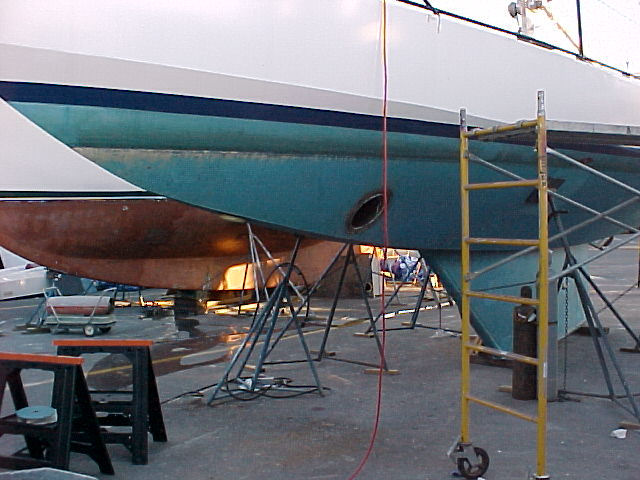

| Exterior view following tube installation |
 |

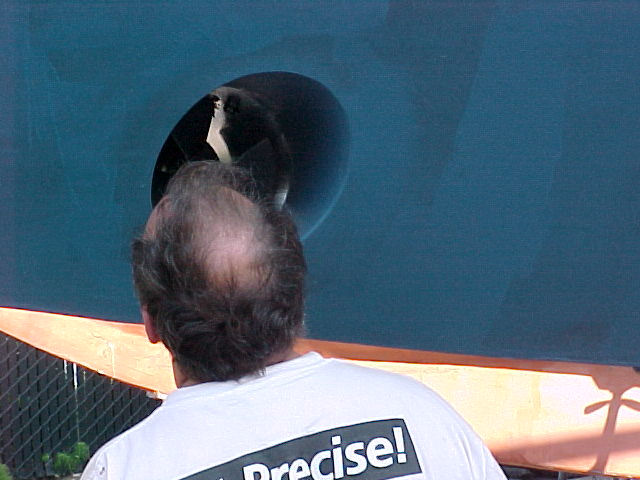

| Thruster installed |
 |

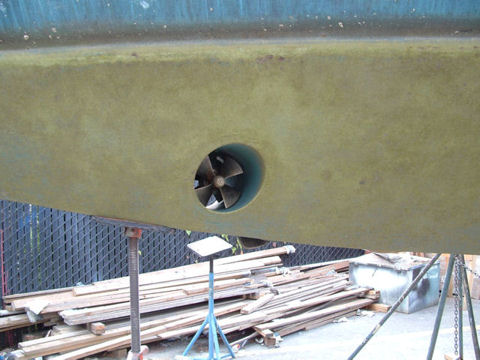

| Thruster at haul-out |
 |

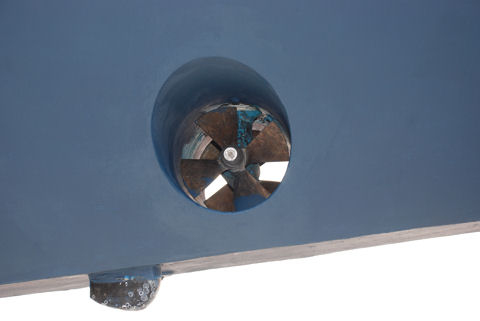

Bow Thruster after zinc change and bottom paint during 2012 haulout
Looking from the starboard side, forward is to the right and the forward scanning sonar slightly aft of the tunnel. |
 |
| Internal Deployment |
{Insert picture of completed sail
locker installation here} |

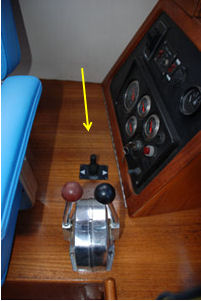

Joystick Control
The joystick control is positioned next to the pilot's left hand and engine controls for easy access when for docking and
anchoring. |
 |
|
