Self Inflicted has one 120VAC and four totally independent DC electrical systems with
combiners in appropriate locations to allow for recharging from a single 12V and single 24V alternators as can be seen in the attached diagram [ click here ].
The following text and photographs provide additional system details.
All critical systems run on the 24V house bank including radar, GPS, navigation lights, and scanning sonar. |
VAC Shore Power Breakers

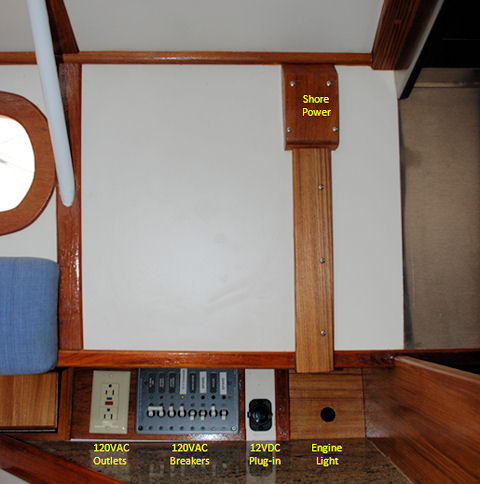

Separate breaker panel 50 ft. 30A shore connection.
All 120VAC electrical circuits, that touch the boat, are isolated using a Marine Shore Power Isolation Transformer. These circuits are based on 10 guage wire in PVC conduit. |
 |
120V AC Shore Power Breakers

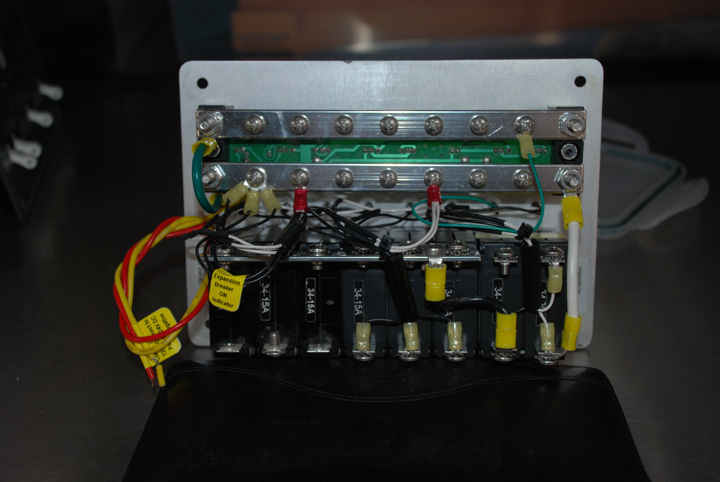

This is the panel's rear prior to being wired.
At right is the double breaker (30A) which is the master. Next from the right is the 15A breaker for the 24VDC charger, next the 15A breaker for the 12VDC charger,
next the 15A breaker for the hot water heater, then the 15A breaker for the double outlet shown above. 15A breakers 5 and 6 are spares.
At left the red and yellow wires are for 12VDC to power the label LEDs. |
 |
Battery Locker
The battery locker holds the starting and house battery banks protected, port and starboard, by the twin stainless steel fresh water tanks.
12V Engine Start Bank
1 x 12 VDC GPL 27: (100 AH)
24V House Bank
2 x 24 VDC GPL4D: (210 AH)
12V House Bank
1 x 12 VDC GPL 27: (100 AH) |
 |
Battery Switches

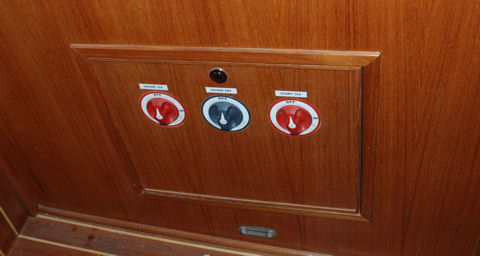

These three switches provide the On-Off selection for the 12V starting, and both 12V and 24V house battery banks. |
 |

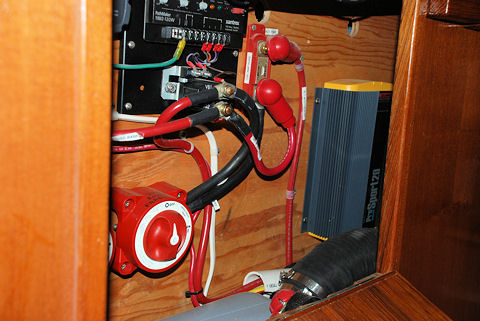

Battery Combiners
Pathfinder 24V
BEP 12V |
 |
Alternators
24V 70AH
12V 50AH |
{Insert picture of engine alternators} |
DC Breaker Panels
Below the Interphase scanning sonar and Horizon VHF are the three DC breaker panels. The large panel (left) is services the 24V house bank with a single white switch that energizes a solenoid for the forward 24V bank. The two smaller panels are for the 12V house bank. |
 |
Night Illumination Floor Lighting

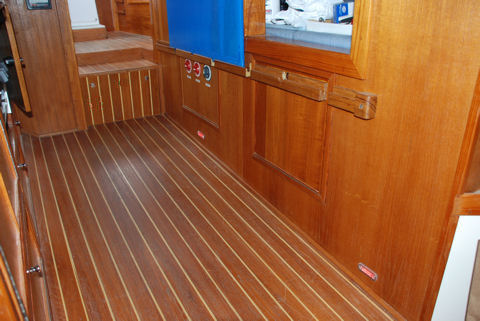

Note the floor-level red LED lights for night-time illumination where it is needed the most ... at floor level.
This innovation was inspired by Boeing's use of floor lighting on its planes that, in an emergency, leads passengers to the nearest exit. |
 |
Parts List
Fuses |
| Source |
Part# |
Where Used |
| West Marine |
Blue Sea PN5297 |
25A for stereo (replaced 2W that blew at volume > 12) |
|
Parts List
Lights |
| Source |
Part# |
Where Used |
| Fisheries Supply |
ANCOR 529381 |
Bayonet Halogen Lamp Base for converting to LED |
| Fisheries Supply |
LunaSea LLB-21FW-61-00 |
G4 Warm white LED for fwd and main cabin |
| Fisheries Supply |
Imtra ILSPG4-10W |
White LED for head (2.2W) |
| Fisheries Supply |
Imtra ILSPG4-06R |
Red LED for head (1.5W) |
|
|
