| Self-Inflicted carries three main anchors, each of a different design,
each with a rode of a different design, to provide maximum flexibility and resilience when at anchor.
The twin, independent, windlasses provide redundancy both dropping and retrieving the hook. |
| Ground Tackle Inventory |
| Fully welded stainless steel anchor ... mounted forward of the bow |
| Twin, fully independent, Lofrans Progress II windlasses |
| Windlasses powered by a 24V battery bank located in the chain locker |
| Twin stainless steel chain stops |
| Rocna 33kg. with swivel and 300ft. all 3/8" HT chain rode |
| Delta 20kg. with swivel and 50ft. 3/8" HT chain + 350ft. nylon rode |
| 6 x 5/8" docking lines with snubbers (2 fwd, 2 aft, 2 springs) |
| Fortress: To be purchased and stern mounted with swivel |
| 100ft nylon rode for stern anchor |
|

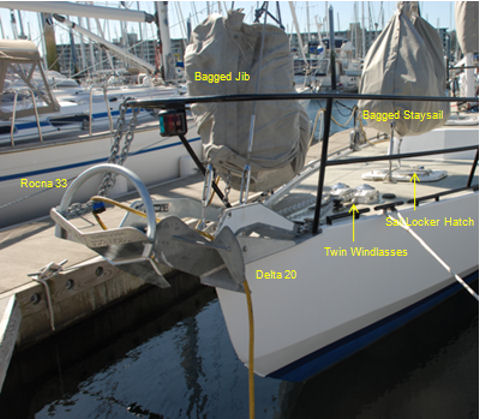

Anchor pulpit
The anchor pulpit is welded into place and forms the leading edge of the foredeck. |
 |
Ground Tackle
The boat comes with three anchors. In the bow the primary anchor is a Rocna 33 with 300ft. of 3/8" HT; the secondary a 20kg Delta with 50ft. of 3/8" HT and 200ft. of nylon: Both with anchor swivels.
The stern anchor will be a Fortress when she's purchased to provide a full complement of different designs for different
conditions. |
 |

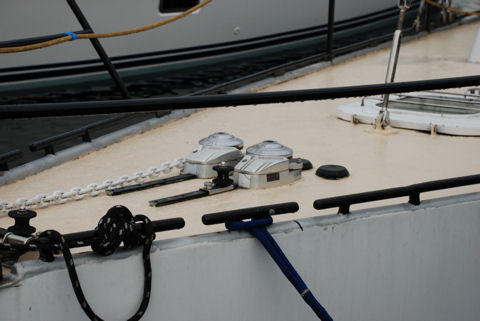

Twin Windlasses with independent controls
Both Windlasses are Lofrans Progress II with 3/8" HT Gypsies. Forward of the windlasses are two independent stainless steel chain stops. |
 |
|
Another view of the twin independent windlasses. The tracks forward of the windlasses make it possible to redirect anchor retrieval in the event of a windlass failure. |
 |

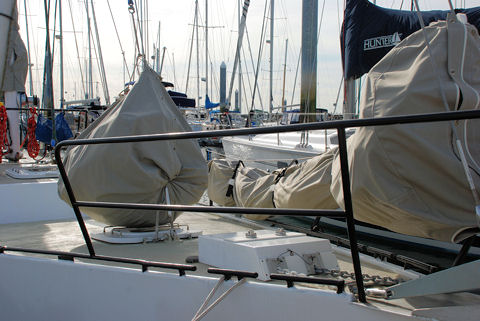

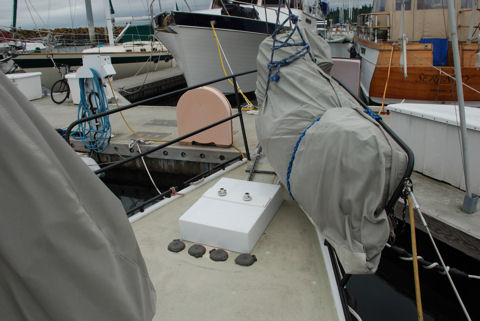

Windlass Cover
I finally got tired of the windlasses being a source of moisture below ... problem solved.
The cover is held on by two bolts and easily locked into place or removed with a winch handle. What little water can get
inside ... quickly drains through holes on the trailing edge. |
 |
| |
 |

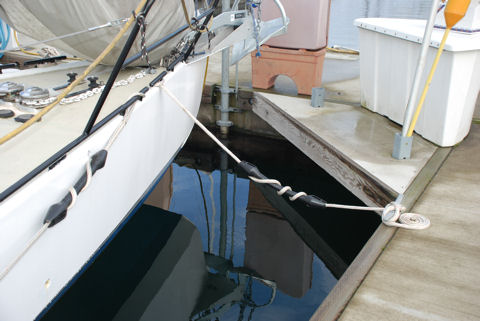

Docking Lines with Snubbers
All docking lines are 5/8" with snubbers ... two forward, two springs, and one aft. |
 |
|
