If you're like me then you don't want to have to leave the wheel to go to the nav.
station to figure out where you are. Don't want to try to read the details on a chart plotter or see a dot on a radar screen under the glare of
a bright sun.
And you sure don't want to bet that those fancy electronics are working at the worst of times.
The cockpit of Self Inflicted was designed with the same care and detail as the cockpit of an airplane. From a single location you can see what you need
to see no matter the conditions. Steer by wheel or autopilot. Navigate by GPS or fluxgate or magnetic compass, using chart plotter or paper charts.
And up on the first starboard-side spreader (visible through the dome): A remote controlled searchlight so you can see what is ahead or signal large ships
(and I have a great story about that for you if you ask).
The following table is an inventory of onboard information system components (pictured below).
| Type |
Manufacturer and Model |
| Autopilot |
Raytheon ST-7000 |
| Chart Plotter Display |
Raytheon RL70 HSB Series LCD Display |
| Fluxgate Compass |
Raytheon (mounted on the leading edge of
the mast) |
| Handheld Compass |
Autohelm Personal |
GPS Receiver |
RayStar 120 |
| Knot Meter |
RayMarine ST60 |
| Magnetic Compass |
Ritchie B463 Globemaster Shock-Mounted Binnacle |
| Radar |
RayMarine 4KW, 24NM |
| Radar Display |
Raytheon RL70 HSB Series LCD Display |
| Rudder Angle Indicator |
RayMarine ST60 |
| Steering Compass |
RayMarine ST60 |
| Wind System Indicator |
RayMarine ST60 |
| Radar Detector |
C.A.R.D. Model 060 |
|
Primary Navigation
- RL70 Radar & Chart Plotter with autopilot integration
- ST-7000 Autopilot
- Core Pack 300
- Hydraulic Pump: Type 2
- Heading Sensor
- GPS Receiver: Raystar 120
Additional pictures of this unit mounted on the binnacle can be viewed on the "Features" and "Pilot House" pages |
 |

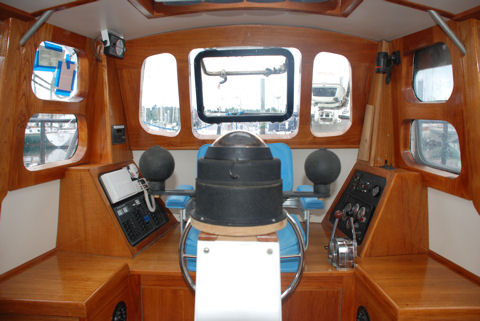

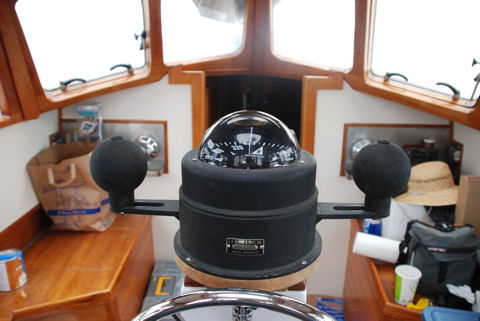

Standby Navigation
- 6" Richie B463 Globemaster Shock-Mounted Binnacle Compass
This compass is stored in the stern locker for mounting on the binnacle in the event that there is an electronics
failure affecting the chartplotter and primary GPS. |
 |

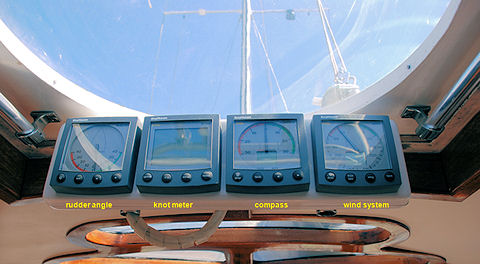

Basic Instrumentation
(presented to the pilot as a tiltable heads-up display)
- Rudder Angle Indicator
- Knot Meter
- Steering Compass
- Wind System Indicator
|
 |
Port Controls (Top)
- Top in white case: AM-FM, CD-DVD player and back-up weather radio
- Left in cabinet: Autopilot remote enclosure
- Top suraface: Spreader searchlight controls
- Botom panel toggle switches: Bilge pump controls
- Bottom panel: Engine controls and fresh water tank monitoring
Close-up below
|
 |

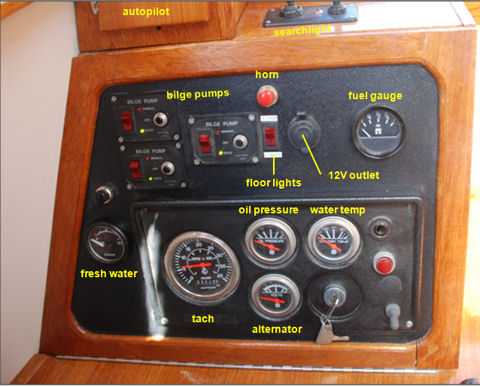

Port Control Panel
(Counter clockwise from top left)
- Raytheon Autopilot
- Steerable spreader-mounted searchlight
- Three switches controlling the three separate bilge pumps (fwd, center, aft)
- Main cabin red LED floor lights
- 12V auxiliary outlet (20A)
- Fuel level gauge
- Fresh water tank monitor
- Engine tachometer
- Engine oil pressure
- Engine water temperature
- Alternator output
|
 |

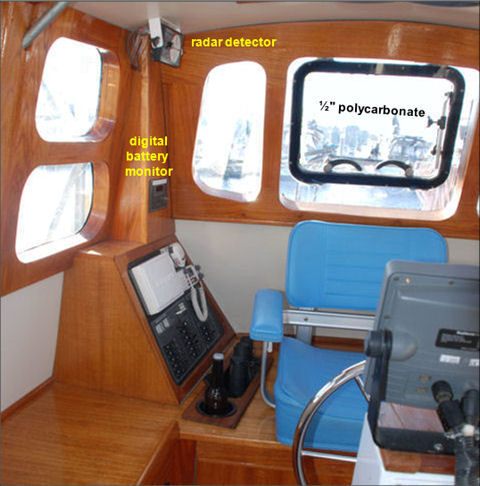

Port Instrumentation (top)
- Card Radar Detector
- Battery bank monitor
|
 |

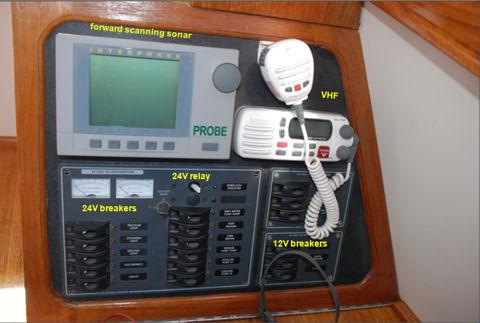

Starboard Control Panel (mid) (Counter clockwise from top left)
- Probe Forward Scanning Sonar
- Standard Horizon Intrepid GX1260S 25 Watt VHF
- 12V and 24V breaker panels
- Relay to sail locker 24V battery bank for windlasses and bow thruster
- Open the cabinet and there is a standard depth sounder should the sonar fail.
|
 |

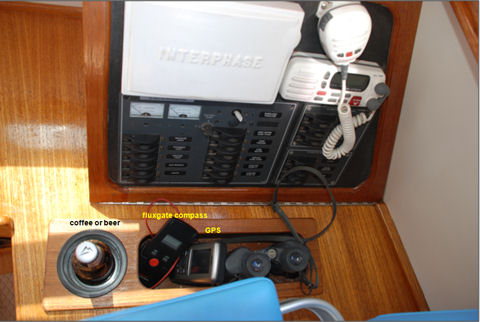

Starboard Instruments
(bottom)
- Cup and bottle holder
- Binoculars, backup-GPS, and baclup fluxgate compass
|
 |
Safety
- Interphase Probe Forward Scanning Sonar (visible in the photo above)
- Backup/Verification Depth Sounder (stored inside the starboard instrument panel)
- CARD Radar Detector (visible in the "Traditional Navigation" photo above)
|
 |
|
|
