Main

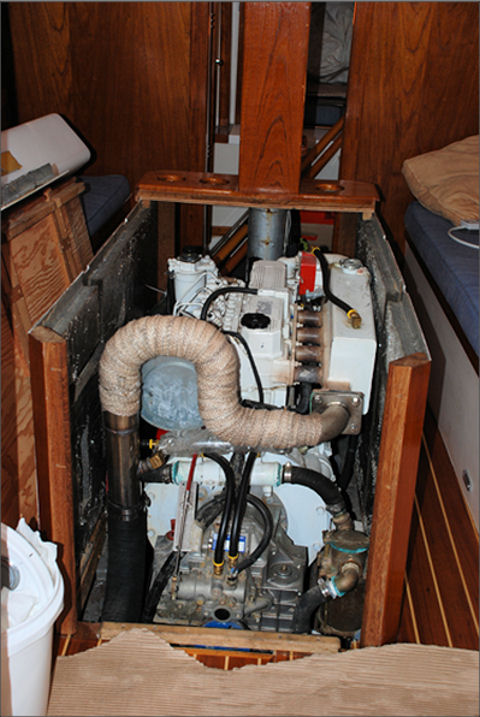

- Mitsubishi S4S-Y365DP Serial #109814
- 4 cyl. (63hp @2500 rpm) Turbo Diesel (idle @650)
- Mitsubishi Engine Instrumentation
- Installed New: April 2004
- Total Engine Hours: 18.3
(2012)- ZF 63 Transmission 1.93:1
- Feathering Propeller: MaxProp 3 Blade
- Propeller Shaft : 1 3/16" Stainless Steel
- Cruising Speed: 8.5 kts @ 2300 rpm
- Maximum Speed: 9.3 kts
- Fuel Supply Hose: USCG Approved
- Keel Fuel Tank: ~210g.
- Skeg Fuel Tank : ~55g.
- Fuel Filter: Racor
- Onboard spare parts inventory
Note: springs are part#
30604-21400,
30604-21401, or
30604-21402.
|
 |
Engine Raw Water Cooling |
Need Picture |

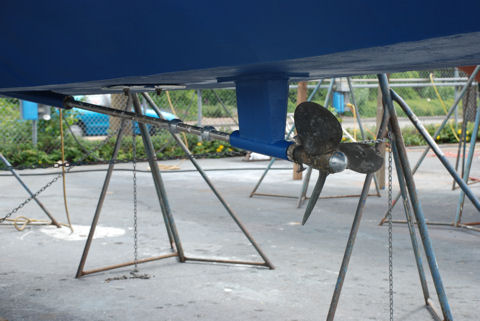

Prop shaft and plate zinc
- Two rubber Cutlass bearings
|
 |

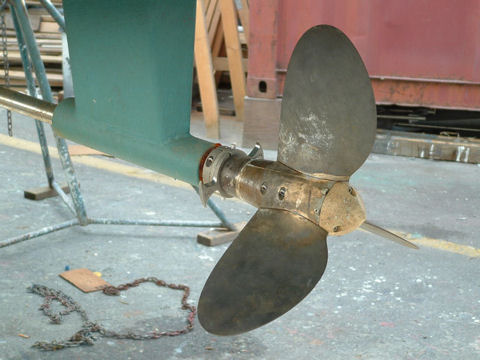

Prop and line cutter
|
 |

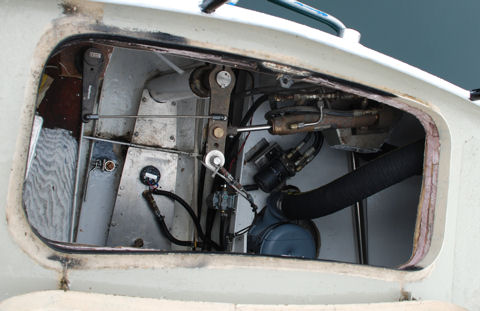

Steering hydraulic cylinder attached to the rudder post arm. Just forward of the cylinder, and
below it, is the 24VDC hydraulic pump for the Raytheon autopilot.
Just forward
|
 |
Maintenance Notes:
- Engine oil changed 15-Sep-2012 (18.3 hrs)
- Transmission fluid changed 15-Sep-2012 (18.3 hrs)
- Engine zinc changed 12-Oct-2012
- Heat exchanger zinc changed 12-Oct-2012
|
|
