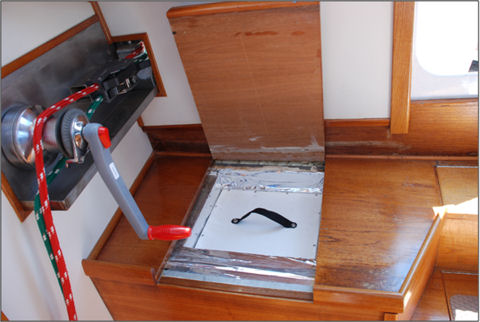

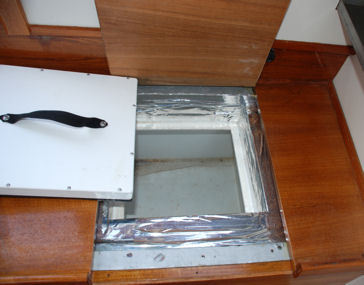

Home Specifications General One Of A Kind Features Bottom Bow Thruster Cabin Cordage Deck Dinghy Electrical Galley Ground Tackle Haul Out Head Information Systems Pilot House Propulsion & Steering Refrigeration Safety Sail Locker Sails & Rigging Staterooms Stern Trips Rebuild 1999 2000 2001 2011 2013a 2013b General Contact Us Legal Notices All boats going out for more than one to two days need refrigeration to avoid food spoilage. Self Inflicted is no different so as the refrigeration system was designed it was necessary to look at all of the factors that need to be taken into consideration. They are: Two different temperatures need to be maintained ... one to keep food frozen for long-term storage ... one for food items being defrosted or maintained at refrigerator temperatures for immediate consumption. The most efficient refrigeration energy source on a sail boat is 24VDC. The compressors on Self Inflicted can also be wired to run on 12VDC and 120VAC. If a refrigeration unit dies all food will be lost If a refrigeration unit's raw water cooling dies the ability to cool will be compromised: Especially in the tropics So the refrigeration system, like so much on Self Inflicted was designed to avoid single points of failure. Each has its own fully independent compressor and each or both of these can be run from a manifold with two independent raw water cooling pump. Lose one compressor and you still have 50% capacity. Lose one raw water pump and you still have 100% capacity. Parts List Port Refrigeration Box SeaFreeze (Bellingham Washington) Volume 8 cu. ft. (#l x #w x #h) Compressor make & model Cooling pump make & model Starboard Refrigeration Box SeaFreeze (Bellingham Washington) Volume 8 cu. ft. (#l x #w x #h) Compressor make & model Cooling pump make & model Port Freezer Both port and starboard boxes are very heavily insulated further insulated by virtue of their location in the boat, and located in the pilot house forward of the doors, under cushions, and very convenient for galley access Starboard Refrigerator Closed Here the hatch is opened reveaing the closed refrigerator box. Port Freezer Open The freezer door is open revealing the boxes' interior. Port Refrigeration Compressor A   Starboard Refrigeration Compressor A   Raw Cooling Water System A   Cooling System Relays The relays shown at right are located on the starboard bulkhead in the aft compartment forward of the propane locker.   Operational Instructions: Be sure the raw water shutoff is closed when not required for refrigeration to avoid risk to the vessel from a leak. The relay system is designed so that when either compressor is running the cooling pump is turned on. It is important to open the cross connect value and close of the line pump valve such that with cross connect is open only a single pump is running and that should both pumps be required the cross-connect valve is closed.
