| A blue water boat needs a large sail and chain locker. |

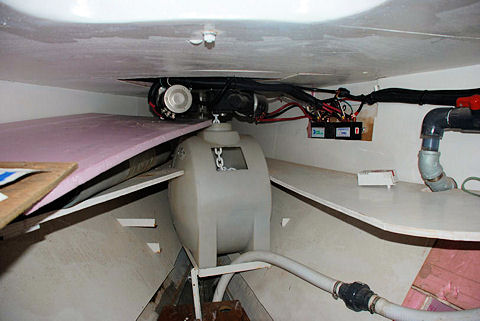

Chain Tanks
When completed the locker will hold fishing poles, fishing tackle, spears, scuba tanks, fenders, line, sea anchor, and a second rode tank. |
 |
Windlasses
The combined sail and chain locker holds separate windlasses, rodes, and polyethylene rode tanks as well as shelves to secure
sails and equipment. The bow locker also has a 24VDC high capacity bilge pump |
 |
Windlass Electrical Controls
With two independent windlasses it makes sense to have two totally independent sets of controls.
When I get back to completing the sail locker, in addition to a fresh coat of paint I am going to put a protective from on
the cutout where these are located that will also protect the terminals from anything touching them that might cause a short. |
 |
Bilge Pump
Rule 56D24 4000GPH bilge pump |
Need picture of bilge pump |
Instrumentation Sensors
Connections to the Probe forward scanning sonar and Raytheon knot meter sensors |
Need picture of knot meter and sonar connections |
Vise
What good is a sailor without a vice? About as valuable as a work bench without a vise. |
 |
|
