Standing Rigging
All mast halyards run through a SpinLoc XT Triple Rope Clutch.
The oldest rigging on the boat is ~2007. |
| Aluminum Mast |
52 ft. 7" |
16m. |
| Bridge Clearance |
56 ft. |
17m. |
| Height to 1st spreader |
19 ft.7" |
6m. |
| Length of 1st spreader (each side) |
5 ft. 2" |
1.6m. |
| Height 1st to 2nd spreader |
16 ft. 1" |
4.9m. |
| Length of 2nd spreader (each side) |
4 ft. 3" |
1.3m. |
| Height 2nd spreader to masthead |
16 ft. 11" |
5.1m. |
| Boom |
? |
|
| Double Forestays |
1/2" Stainless Steel |
| Staysail Stay |
1/2" Stainless Steel |
| Foreward Upper Shroud |
1/2" Stainless Steel |
| Lower Shroud |
1/2" Stainless Steel |
| Aft Upper Shroud |
1/2" Stainless Steel |
| Standing Backstay |
1/2" Stainless Steel |
|
Mast & Main

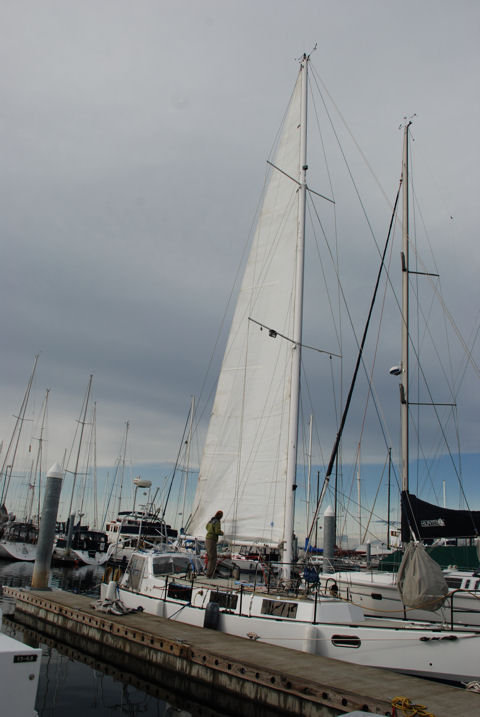

The new main has finally been fully rigged with two reef, Cunningham, and outhaul.
Here's Cassie running the lines forward to the mast for our in-slip tests. |
 |
Masthead

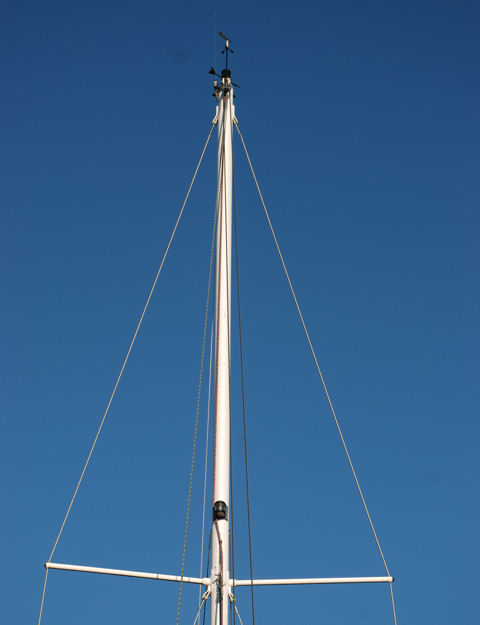

Working from top-to bottom you can see the masthead instrumentation:
- Raytheon Anemometer
- 24VDC Tricolor & Strobe
- Mechanical Wind Vector
- VHF Whip
Below that the steaming light and at the bottom of the picture the upper spreaders
On the masthead the wind direction and wind speed monitors, the masthead tricolor and strobe as well as a short VHF antenna. |
 |

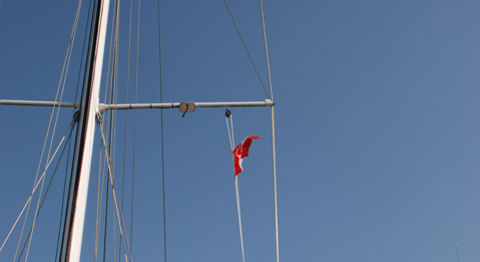

Courtesy Flag
Canadian courtesy flag flying from the starboard spreader halyard.
When this picture was taken the spreader searchlight was down for repair: It would normally be fastened to the pad just to the left of the flag. |
 |
Spreaders

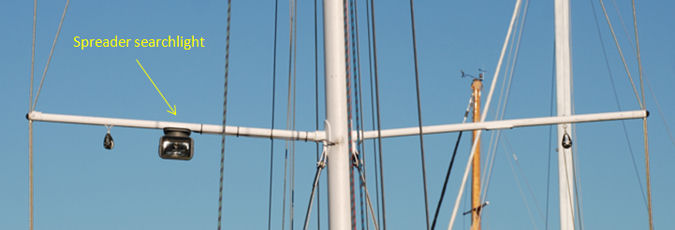

The spreaders are home to a remote steerable searchlight providing both search capabilities and the ability to point a very bright light at the bow for anchoring, at the stern for working with the dinghy, and on deck for multiple activities. |
 |
| Running Rigging |
| Jib |
| Halyard |
Green - switch to blue |
| Sheets |
Blue |
| Downhaul |
White |
| Staysail |
| Halyard |
Blue - switch to green |
| Sheets |
Green |
| Downhaul |
White |
| Main |
| Halyard |
Red |
| Sheets |
Red |
| Cunningham |
Yellow |
| #1 Reefing Point |
Yellow |
| #2 Reefing Point |
Yellow |
| Topping Lift |
White & Red |
| Outhaul |
White |
| Boom Vang |
Black |
| Running Backstays |
Black 1/2" XL Dacron with 4:1 Purchase |
| Spreader Halyards |
| Port |
Silver 5mm 8 plait dinghy line (white+silver) |
| Starboard |
Silver 5mm 8 plait dinghy line (white+silver) |
|
| Halyards |
Need picture of rope clutch at mast |
| Jib Sheets |
Need picture of jib sheets running aft |
| Staysail & Main Sheets |
Need picture of staysail and main sheets running to the pilot house |
| Topping Lift |
Need picture of topping lift at the boom |
| Outhaul |
Need picture of the outhaul |
| Boom Vang |
Need picture of the boom vang |
| Running Backstays Forward |
Need pictures stored forward |
| Running Backstays Aft |
Need pictures deployed aft |
| Winches |
| Jib |
| Jib Halyard |
Shared mast mounted Lewmar 40 SLT |
| Jib Sheets |
2 x Lewmar 44 SLT mounted on deck outside the pilothouse
doors |
| Staysail |
| Staysail Halyard |
Shared mast mounted Lewmar 40 SLT |
| Staysail Sheets |
X |
| Main |
| Main Halyard |
Shared mast mounted Lewmar 40 SLT |
| Main Sheets |
2 x Lewmar 30 SS located in the pilothouse |
| Lazy Jacks |
None |
| Cunningham |
? |
| #1 Reefing Point |
? |
| #2 Reefing Point |
? |
| Outhaul |
Black |
| Jack Lines |
Black |
|

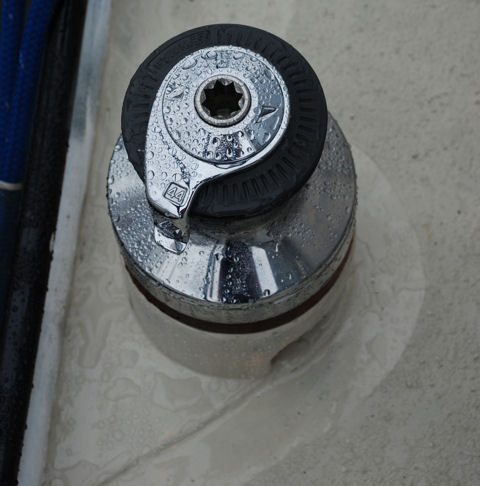

Jib Sheet Winch
Lewmar 44 Self Tailing. One of these winches is located just outside both the port and starboard pilothouse doors. |
 |
Port & Starboard Sheet Winch

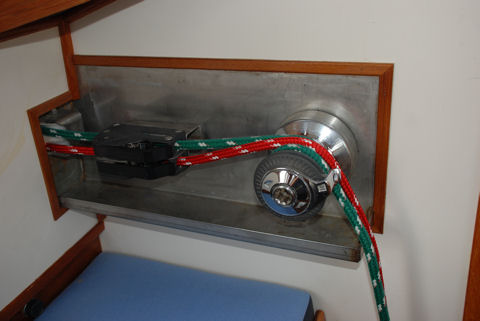

Port and starboard these Lewmar STC30 winches are mounted to the bulkhead through stainless steel trays that catch water from sheets and funnel them back to their natural environment.
The green sheet is the staysail and the red the main sheet. |
 |
| Sails |
| #3 Jib |
| Mfg. & Year |
Northsail 2000 |
| Material |
8.8 oz. Dacron |
| Dimensions |
433 sq. ft. |
| Staysail |
| Mfg. & Year |
Northsail 2007 |
| Material |
8 oz. Dacron w/ one reef point |
| Dimensions |
~161.9 sq. ft. (luff 34.6 ft. x L.P. 9.36 ft.) |
| Main |
| Mfg. & Year |
Northsail 2007 |
| Material |
Dacron |
| Dimensions |
~384 sq. ft. |
| Genoa |
| Mfg. & Year |
Not known |
| Material |
Dacron |
| Dimensions |
~707 sq. ft (137%). |
|
80% #3 NorDac Jib

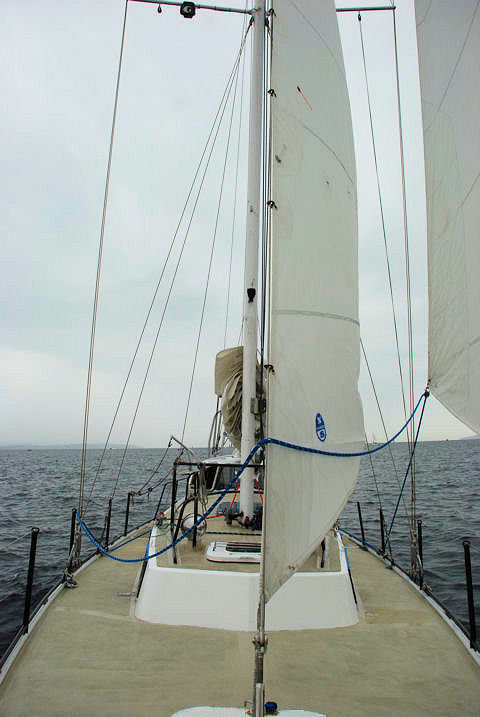

The jib (blue sheets) is clearly seen flying outside the staysail (green sheets) while approaching Bainbridge Island
under light wind as viewed from the port-side pilothouse door. The main is flaked on the boom.
The jib is rated for a maximum apparent wind speed of 30 knots. |
 |

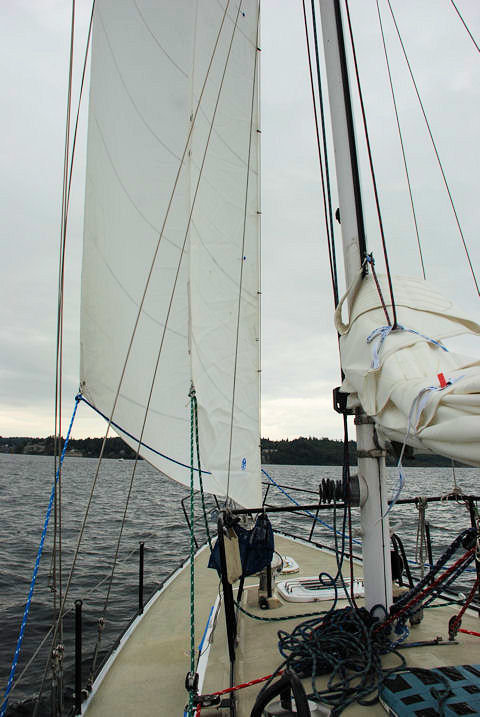

Staysail
This picture shows the staysail flying inside the jib with the main flaked on the boom
under light wind as viewed from the bow pulpit. |
 |

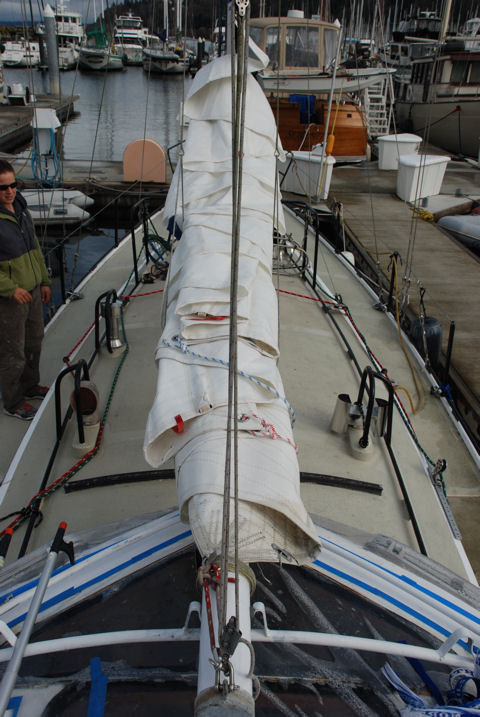

| Main flaked on the boom |
 |
|

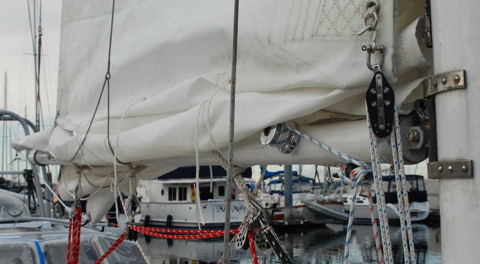

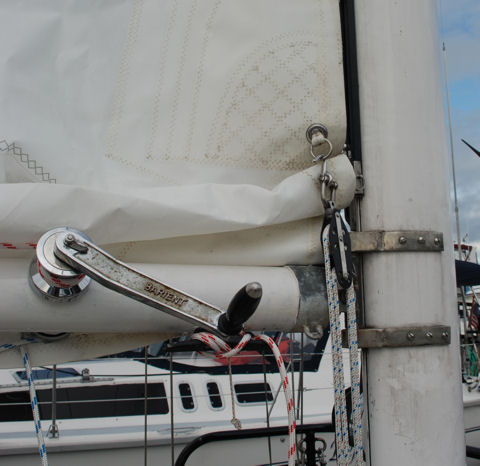

First Reef and Cunningham |
 |
| Reef and Cunningham |
 |
| First Reef |
 |

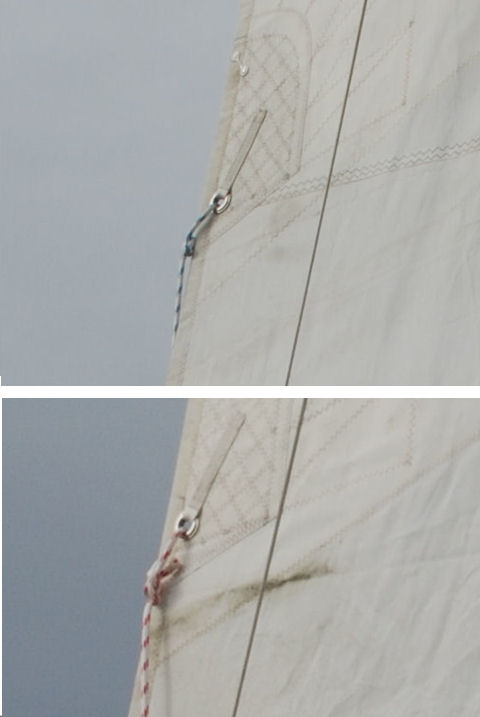

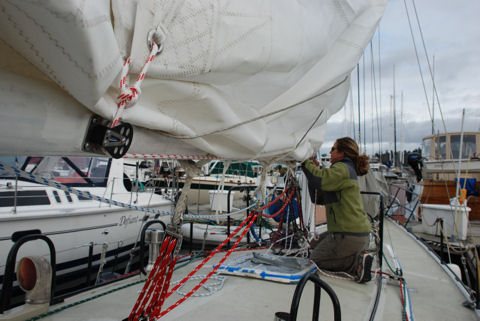

Reef Points
First reef in red (port), second reef in blue (starboard).
Many of these pictures were taken with the lines accidentally reversed while doing the initial rigging. |
 |

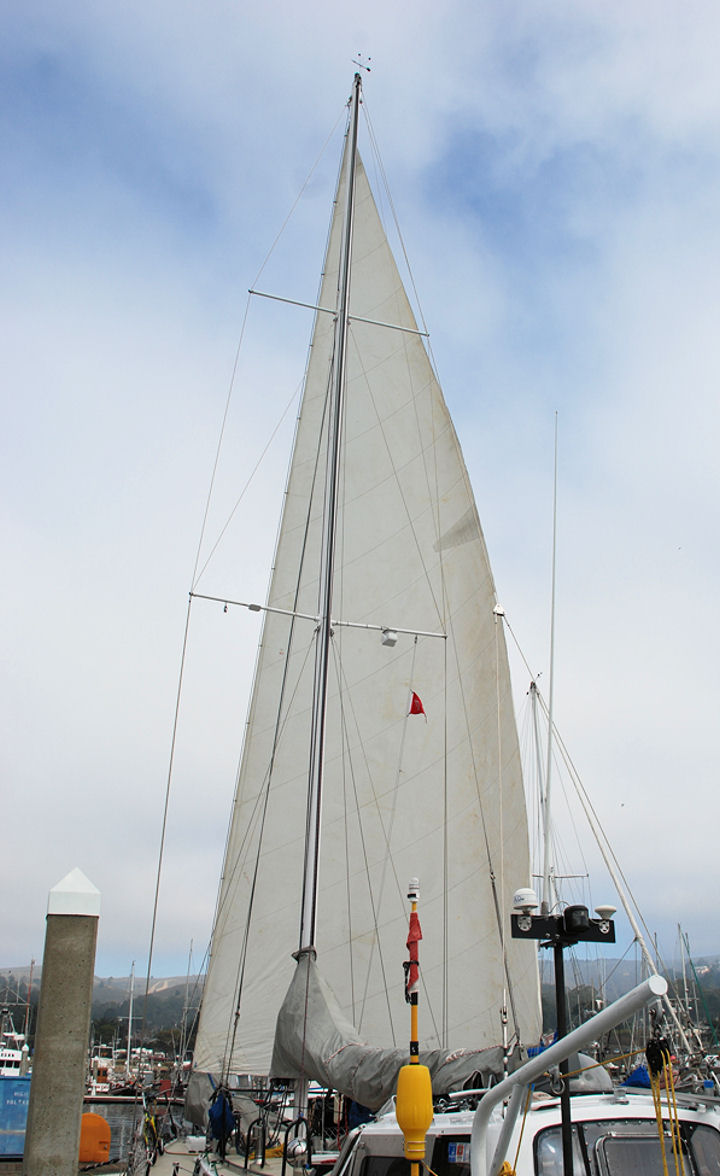

Genoa

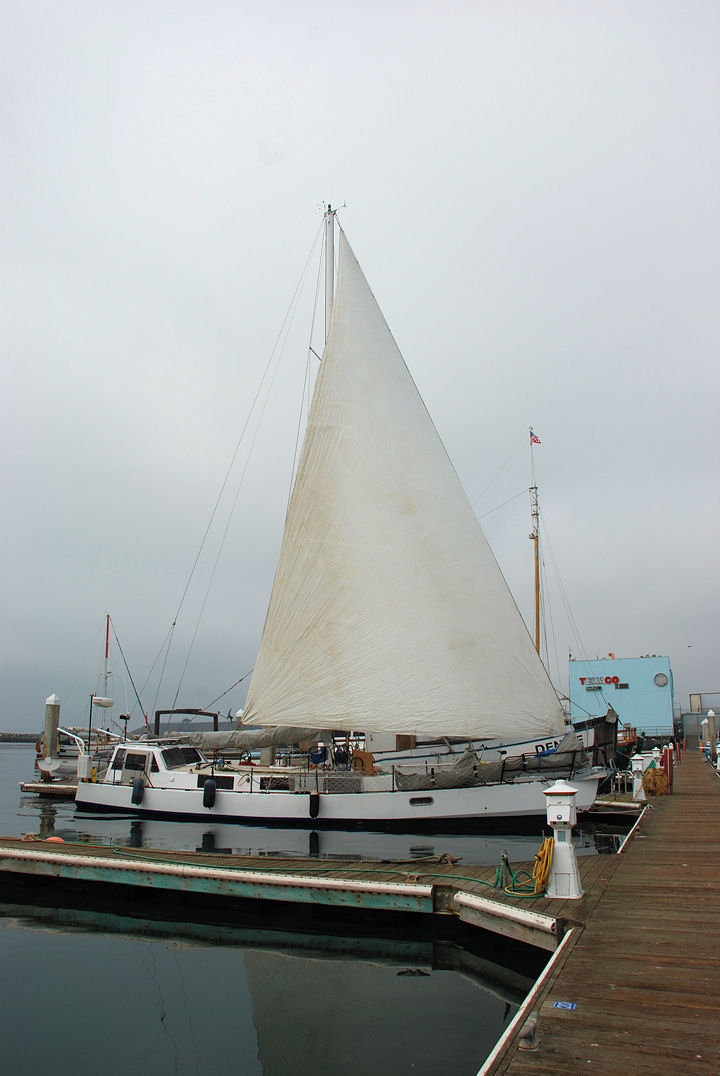

No more than a 1 knot wind today so I pulled out the Genoa and hoisted it to look at the condition and take
measurements.
Information here is for building a long-tube deck bag. |
 |
Genoa
This picture was taken without sheets and the clue just tied off to a stanchion so a measurement could be taken for a
new on-deck sail bag.
Yes it's a bit older and has some dirty but in light winds she does what she is intended to do ... provide a lot of square
footage of lightweight dacron.
And because Self-Inflicted has twin forestays she runs wing-and-wing with the jib to one side and the genoa to the other. |
 |
|
